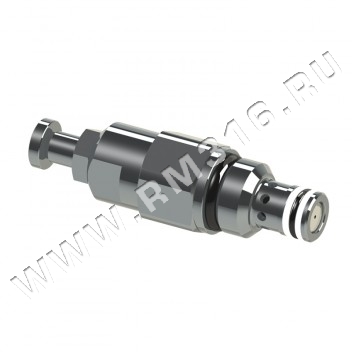

VCF6 CARTRIDGE FLOW CONTROL VALVE ADJUSTABLE COMPENSATED (OLEOWEB, ИТАЛИЯ)
COMPENSATED CARTRIDGE FLOW RESTRICTOR 2 WAYS SAE08 ADJUSTABLE
The adjustable compensated flow control valves VCF6 have the task of keeping the lowering speed of a hydraulic actuator constant, regardless of the working pressure induced by the load. Adjustment is allowed within the setting ranges.
DESCRIPTION
The VCF6 are compensated flow control valves. A typical example of application is that of hydraulic power packs, where they are installed in the central body, on the return line of a hydraulic cylinder, and their function is to guarantee the lowering at constant speed even in the presence of load variations. The VCF6 are adjustable valves: by acting on the adjustment screw it is possible to vary the outlet flow form the valve. Thanks to the wide selection of calibration fields it is possible to adjust flow rates from 0.6 l / min to 18 l / min. By means of the nut positioned on the adjustment screw, the setting of the valve is protected against accidental tampering. By coupling the VCF6 valve to a pressure relief valve connected in parallel within a hydraulic circuit, it is also possible to obtain a flow rate control on the cylinder with excess flow discharge. In this case, for an optimal functioning of the valve it is recommended to always guarantee an inlet flow of at least 10% higher than that to be regulated. The VCF6 valve manages the constant flow in a single direction through the valve itself; in the opposite direction there is no hydraulic compensation and the flow through the valve is free with pressure drops proportional to the flow rate and to the passage area. The maximum working pressure for the VCF6 valve is 350 bar. The VCF6 flow control valves can be installed in 2-way cavities dimensioned according to the SAE08 standard (3/4-16 UNF thread). In addition to the screw adjustment (standard), the VCF6 is also available with a handwheel regulation. All the valve components are made of high-strength steel and the external components are protected from the action of corrosive agents by zinc-plating treatment.
ЕСЛИ В ТАБЛИЦЕ НИЖЕ ПОКАЗАНО, ЧТО ИНТЕРЕСУЮЩАЯ ВАС ПРОДУКЦИЯ В НАСТОЯЩИЙ МОМЕНТ ОТСУТСТВУЕТ НА СКЛАДЕ, ВЫ МОЖЕТЕ ОБРАТИТЬСЯ К СОТРУДНИКАМ МАГАЗИНА ГИДРАВЛИКИ RM316.RU ДЛЯ УТОЧНЕНИЯ СРОКОВ ПОСТАВКИ ТОВАРА.
Компания Oleoweb (Италия) производит гидравлические комплектующие: гидрозамки, предохранительные и обратные гидроклапаны, гидравлические клапаны последовательности, тормозные гидроклапаны, ручные гидронасосы, диверторы гидравлические, шаровые краны высокого давления, гидравлические плиты CETOP для гидрораспределителей и многое другое. В нашем магазине гидравлики можно купить со склада или заказать любую продукцию Oleoweb по низким ценам. Осуществляем оперативную доставку гидрокомпонентов Oleoweb по всей России.
Техническая документация
Загрузите наш каталог в pdf формате 204.1 KBДоставка
