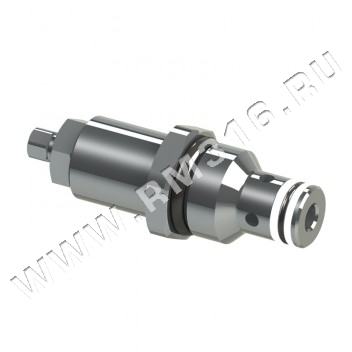

VBF6 ADJUSTABLE BIDIRECTIONAL FLOW CONTROL VALVE (OLEOWEB, ИТАЛИЯ)
ADJUSTABLE FLOW CONTROL VALVE, CARTRIDGE EXECUTION SIZE SAE8/2 (3/4-16UNF) BIDIRECTIONAL NOT COMPENSATED
The bidirectional flow restrictors VBF6 allow the flow regulation in both ways.
DESCRIPTION
The VBF6 are adjustable bidirectional flow control valves. The flow restriction therefore occurs in both directions of the valve crossing. The valve is not compensated: the set opening value therefore corresponds to a variable flow rate depending on the pressure drops present across the valve. By inserting a hydraulic compensator inside the circuit, a constant flow regulation system independent of load variations can be obtained. The valve can be used as an ON / OFF tap. The VBF6 flow control valves can be installed in 2-way cavities dimensioned according to the SAE08 standard (3/4-16 UNF thread). The maximum working pressure for the flow restrictor VBF6 is 350 bar, while its use is recommended with inlet flow up to 40 l / min. The valve opening adjustment is by screw in the standard configuration; the regulation with a graduated hand knob is available as option. All the valve’s components are made of high-resistance steel and the external components are protected from the action of corrosive agents by zinc plating treatment.
ЕСЛИ В ТАБЛИЦЕ НИЖЕ ПОКАЗАНО, ЧТО ИНТЕРЕСУЮЩАЯ ВАС ПРОДУКЦИЯ В НАСТОЯЩИЙ МОМЕНТ ОТСУТСТВУЕТ НА СКЛАДЕ, ВЫ МОЖЕТЕ ОБРАТИТЬСЯ К СОТРУДНИКАМ МАГАЗИНА ГИДРАВЛИКИ RM316.RU ДЛЯ УТОЧНЕНИЯ СРОКОВ ПОСТАВКИ ТОВАРА.
Компания Oleoweb (Италия) производит гидравлические комплектующие: гидрозамки, предохранительные и обратные гидроклапаны, гидравлические клапаны последовательности, тормозные гидроклапаны, ручные гидронасосы, диверторы гидравлические, шаровые краны высокого давления, гидравлические плиты CETOP для гидрораспределителей и многое другое. В нашем магазине гидравлики можно купить со склада или заказать любую продукцию Oleoweb по низким ценам. Осуществляем оперативную доставку гидрокомпонентов Oleoweb по всей России.
