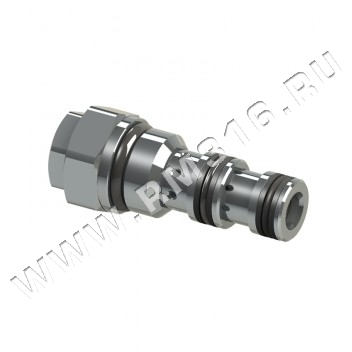

SINGLE PILOT OPERATED CHECK VALVE VPR (OLEOWEB, ИТАЛИЯ)
PILOT OPERATED CHECK VALVE SINGLE EFFECT, SAE CARTRIDGE EXECUTION
The VPR PO check valves are used to maintain an actuator in its working position until the valve is released by hydraulic control.
DESCRIPTION
The task of pilot operated check valves is to avoid unwanted movements of a hydraulic actuator caused by its workload. A typical application is the sustenance in his working position of an arm of an agricultural machine. The release of the movement is possible by feeding the hydraulic pilot line that opens the valve. They are preferred to the overcenter valves when there is no need for control over the movement of the actuator. The VPR are single block valves. When applied to a double effect cylinder, they lock it in place on one side only. The cartridge valve VPR can be installed inside 3-way cavities dimensioned according to the SAE08 standard (3/4-16 UNF thread) or SAE10 (7/8-14 UNF thread), for recommended working flow up to 30 l/min. The maximum working pressure is 350 bar. All the valve components are made of high-strength steel and the external components are protected from the action of corrosive agents by zinc plating treatment.
ЕСЛИ В ТАБЛИЦЕ НИЖЕ ПОКАЗАНО, ЧТО ИНТЕРЕСУЮЩАЯ ВАС ПРОДУКЦИЯ В НАСТОЯЩИЙ МОМЕНТ ОТСУТСТВУЕТ НА СКЛАДЕ, ВЫ МОЖЕТЕ ОБРАТИТЬСЯ К СОТРУДНИКАМ МАГАЗИНА ГИДРАВЛИКИ RM316.RU ДЛЯ УТОЧНЕНИЯ СРОКОВ ПОСТАВКИ ТОВАРА.
Компания Oleoweb (Италия) производит гидравлические комплектующие: гидрозамки, предохранительные и обратные гидроклапаны, гидравлические клапаны последовательности, тормозные гидроклапаны, ручные гидронасосы, диверторы гидравлические, шаровые краны высокого давления, гидравлические плиты CETOP для гидрораспределителей и многое другое. В нашем магазине гидравлики можно купить со склада или заказать любую продукцию Oleoweb по низким ценам. Осуществляем оперативную доставку гидрокомпонентов Oleoweb по всей России.
Техническая документация
Загрузите наш каталог в pdf формате 215.6 KBДоставка
