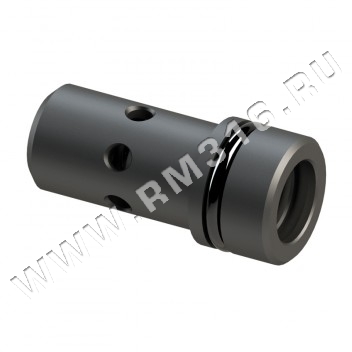

VSCR6 FLOW CONTROL PRESSURE COMPENSATED VALVE, UNIDIRECTIONAL (OLEOWEB, ИТАЛИЯ)
COMPENSATED FLOW RESTRICTOR TWO WAYS WITH CONSTANT FLOW, FIXED SETTING
Flow control pressure compensated valves with fixed regulation VSCR6 allow to keep a constant lowering speed on an hydraulic actuator in every condition of load pressure. They are ins ert type valves, sized to be fitted into cavities SAE08/2. A typical apclication can be mini power-packs, downstream the electric check valve.
DESCRIPTION
The compansated flow regulators VSCR6 are fitted in to a cylidric cavity with diameter 12.7 mm (SAE08/2), in the circuits of mini power packs, in order to manage a constant flow to their return line. These valves allows also the feeding flow to the cylinders without compensation. Valves VSCR6 are insert execution valves and have fixed setting regarding the outlet flow. A calibrated orifice on the internal spool of the valve manages the regulated flow. Setting range is from 1 lpm (0,26 USgpm) to 12 lpm (3,2 USgpm), with tolerance +/- 10%. Maximum working pressure not over 250 bar (3625 PSI). Flow control valves VSCR, thanks to their high performace combined with its easy installation, guarantee a high quality/price ratio. Thanks to the fixed regulation, once determined the ideal flow corresponding to the lowering speed, the valves VSCR6 don’t need any setting operation more, with a consequent optimization in therms of installation time.
ЕСЛИ В ТАБЛИЦЕ НИЖЕ ПОКАЗАНО, ЧТО ИНТЕРЕСУЮЩАЯ ВАС ПРОДУКЦИЯ В НАСТОЯЩИЙ МОМЕНТ ОТСУТСТВУЕТ НА СКЛАДЕ, ВЫ МОЖЕТЕ ОБРАТИТЬСЯ К СОТРУДНИКАМ МАГАЗИНА ГИДРАВЛИКИ RM316.RU ДЛЯ УТОЧНЕНИЯ СРОКОВ ПОСТАВКИ ТОВАРА.
Компания Oleoweb (Италия) производит гидравлические комплектующие: гидрозамки, предохранительные и обратные гидроклапаны, гидравлические клапаны последовательности, тормозные гидроклапаны, ручные гидронасосы, диверторы гидравлические, шаровые краны высокого давления, гидравлические плиты CETOP для гидрораспределителей и многое другое. В нашем магазине гидравлики можно купить со склада или заказать любую продукцию Oleoweb по низким ценам. Осуществляем оперативную доставку гидрокомпонентов Oleoweb по всей России.
Техническая документация
Загрузите наш каталог в pdf формате 220.8 KBДоставка
