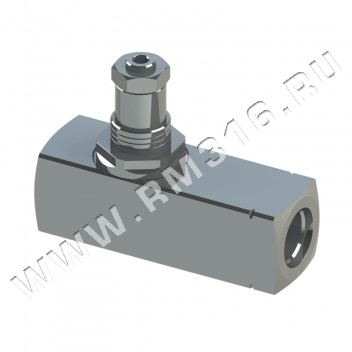

SVU-SAE UNIDIRECTIONAL FLOW CONTROL VALVES WITH SCREW ADJUSTMENT (OLEOWEB, ИТАЛИЯ)
FLOW REGULATORS BY HEXAGON SCREW
SVU-SAE (UNF thread) allows free oil passing in one direction and regulates the flow on the opposite one. Generally, it is mounted between the cylinder and the check valve.
DESCRIPTION
It is used to regulate the oil in one sense and have the full flow on the opposite one, it is not pressure compensated so the setting depends on the application pressure, the oil viscosity and the oil temperature. The sizes range includes several threads starting from SAE4 up to SAE8. Setting is made by rotating the pin clockwise and vice versa by an Allen key ins erted on the upper side of the pin., Once the valve is se t, tighten the nut placed closed to the pin. This version does not have the external thread for nut tightening. It does not allow leakages. The external body is made of high resistance steel and externally protected from oxidations by zinc treatment. On request we can supply a zinc/nickel treatment to increase the oxidation resistance when the valve has poor protection or it is located in external environments.
ЕСЛИ В ТАБЛИЦЕ НИЖЕ ПОКАЗАНО, ЧТО ИНТЕРЕСУЮЩАЯ ВАС ПРОДУКЦИЯ В НАСТОЯЩИЙ МОМЕНТ ОТСУТСТВУЕТ НА СКЛАДЕ, ВЫ МОЖЕТЕ ОБРАТИТЬСЯ К СОТРУДНИКАМ МАГАЗИНА ГИДРАВЛИКИ RM316.RU ДЛЯ УТОЧНЕНИЯ СРОКОВ ПОСТАВКИ ТОВАРА.
Компания Oleoweb (Италия) производит гидравлические комплектующие: гидрозамки, предохранительные и обратные гидроклапаны, гидравлические клапаны последовательности, тормозные гидроклапаны, ручные гидронасосы, диверторы гидравлические, шаровые краны высокого давления, гидравлические плиты CETOP для гидрораспределителей и многое другое. В нашем магазине гидравлики можно купить со склада или заказать любую продукцию Oleoweb по низким ценам. Осуществляем оперативную доставку гидрокомпонентов Oleoweb по всей России.
Техническая документация
Загрузите наш каталог в pdf формате 226.7 KBДоставка
