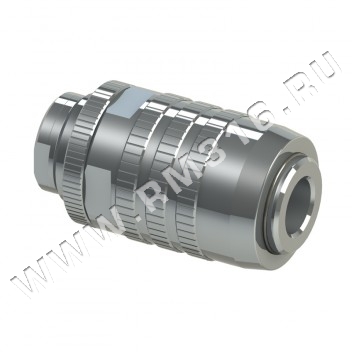

UNDIRECTIONAL FLOW CONTROL VALVES VURF (OLEOWEB, ИТАЛИЯ)
HOUSING NEEDLE VALVES WITH BY-PASS
VURF unidirectional throttle valves allow the free passage of oil in one direction and regulate the amount of flow in the opposite direction.
DESCRIPTION
In applications where it is necessary to limit the speed of an actuator, needle valves represent a component of primary importance into the hydraulic system. In the VURF needle valves the flow from port 2 to port 1 is adjustable by rotating the outer mantle. The valve is not compensated and therefore the actuator speed is directly influenced by variables such as working pressure, oil viscosity or operating temperature. By means of a stop ring it is also possible to lock the valve at the desired setting value. In the opposite direction, from port 1 to port 2, a by-pass valve allows free passage of the whole flow rate. VURF flow regulating valves are available in sizes BSPP 1/8 to BSPP 1-1/4, for flow rates up to 200 lpm (52,8 gpm) and pressures up to 350 bar (5075 PSI). The external body is made of high-strength steel and protected externally from oxidation with a galvanizing treatment. Zinc/Nickel surface treatment is available on request for better resistance to oxidation in cases of exposure to aggressive corrosive agents such as particular atmospheric and environmental conditions.
ЕСЛИ В ТАБЛИЦЕ НИЖЕ ПОКАЗАНО, ЧТО ИНТЕРЕСУЮЩАЯ ВАС ПРОДУКЦИЯ В НАСТОЯЩИЙ МОМЕНТ ОТСУТСТВУЕТ НА СКЛАДЕ, ВЫ МОЖЕТЕ ОБРАТИТЬСЯ К СОТРУДНИКАМ МАГАЗИНА ГИДРАВЛИКИ RM316.RU ДЛЯ УТОЧНЕНИЯ СРОКОВ ПОСТАВКИ ТОВАРА.
Компания Oleoweb (Италия) производит гидравлические комплектующие: гидрозамки, предохранительные и обратные гидроклапаны, гидравлические клапаны последовательности, тормозные гидроклапаны, ручные гидронасосы, диверторы гидравлические, шаровые краны высокого давления, гидравлические плиты CETOP для гидрораспределителей и многое другое. В нашем магазине гидравлики можно купить со склада или заказать любую продукцию Oleoweb по низким ценам. Осуществляем оперативную доставку гидрокомпонентов Oleoweb по всей России.
Техническая документация
Загрузите наш каталог в pdf формате 343 KBДоставка
