CUR6 CARTRIDGE CHECK VALVE SAE8/2 (OLEOWEB, ИТАЛИЯ)
CARTRIDGE UNIDIRECTIONAL VALVE CAVITY SIZE 3/4-16 UNF, POPPET OR BALL TYPE

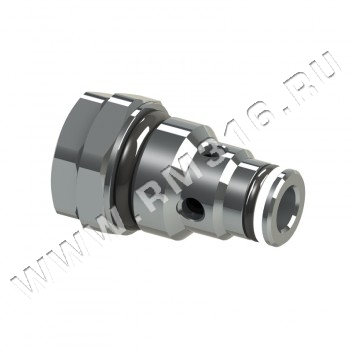

The cartridge check valve CUR6 allows the flow in one direction, locking it in the opposite one.
DESCRIPTION
The CUR6 series valves are cartridge unidirectional valves sized for standard cavity SAE08/2 (thread 3/4-16 UNF). Flow is allowed from port 1 to port 2 while it is interrupted in the opposite way. The valve CUR6 is available with poppet or ball sealing. It is possible to choose between four springs for so many opening pressure value. Thanks to the cartridge sized to be fitted into standard cavity SAE08/2, the valve can be easy installed inti the most common HIC’s manifolds. A tyipical installation can be into manifold for mini power-pack group 1. The maximum working pressure for the valve CUR6 is 350 bar (5075 PSI), while maximum recommended flow rate is 25 lpm (6,6 USgpm). The poppet and the ball are both built with high resistance steel, hardened and grinded and they grant the sealing for the valve CUR6 thanks to the perfect accordance with the cartridge. External components, also built with high resistance steel, are protetcted against the corrosive agents by zinc platng treatment.
ЕСЛИ В ТАБЛИЦЕ НИЖЕ ПОКАЗАНО, ЧТО ИНТЕРЕСУЮЩАЯ ВАС ПРОДУКЦИЯ В НАСТОЯЩИЙ МОМЕНТ ОТСУТСТВУЕТ НА СКЛАДЕ, ВЫ МОЖЕТЕ ОБРАТИТЬСЯ К СОТРУДНИКАМ МАГАЗИНА ГИДРАВЛИКИ RM316.RU ДЛЯ УТОЧНЕНИЯ СРОКОВ ПОСТАВКИ ТОВАРА.
Компания Oleoweb (Италия) производит гидравлические комплектующие: гидрозамки, предохранительные и обратные гидроклапаны, гидравлические клапаны последовательности, тормозные гидроклапаны, ручные гидронасосы, диверторы гидравлические, шаровые краны высокого давления, гидравлические плиты CETOP для гидрораспределителей и многое другое. В нашем магазине гидравлики можно купить со склада или заказать любую продукцию Oleoweb по низким ценам. Осуществляем оперативную доставку гидрокомпонентов Oleoweb по всей России.
Техническая документация
Загрузите наш каталог в pdf формате 201.4 KBДоставка
