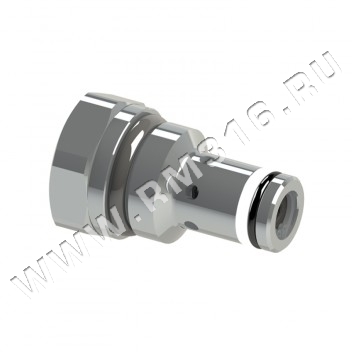

VSC6 FLOW CONTROL PRESSURE COMPENSATED VALVE, FIXED REGULATION (OLEOWEB, ИТАЛИЯ)
COMPENSATED FLOW RESTRICTOR TWO WAYS WITH CONSTANT FLOW, FIXED SETTING
Flow control pressure compensated valves with fixed regulation VSC6 allow to keep a constant lowering speed on an hydraulic actuator in every condition of load pressure. They are cartridge valves, sized for cavity SAE08/2. Typical application field can be hydraulic tail lifts or platforms.
DESCRIPTION
The flow regulators VSCR6, thanks to the hydraulic compensator, are able to grant a constant flow through the valve itself even in event of load variations. They must be screwed into SAE08/2 cavity. These valves allows also the flow without compensation in the opposite direction. Valves VSC6 have fixed setting. A calibrated orifice on the internal spool of the valve manages the regulated flow. Setting range is from 1 lpm (0,26 USgpm) to 12 lpm (3,2 USgpm), with tolerance +/- 10%. Maximum working pressure not over 250 bar (3625 PSI). Flow control valves VSC6, thanks to their high performace combined with its easy installation, guarantee a high quality/price ratio. Thanks to the fixed regulation, once determined the ideal flow corresponding to the lowering speed, the valves VSC6 don’t need any setting operation more, with a consequent optimization in therms of installation time.
ЕСЛИ В ТАБЛИЦЕ НИЖЕ ПОКАЗАНО, ЧТО ИНТЕРЕСУЮЩАЯ ВАС ПРОДУКЦИЯ В НАСТОЯЩИЙ МОМЕНТ ОТСУТСТВУЕТ НА СКЛАДЕ, ВЫ МОЖЕТЕ ОБРАТИТЬСЯ К СОТРУДНИКАМ МАГАЗИНА ГИДРАВЛИКИ RM316.RU ДЛЯ УТОЧНЕНИЯ СРОКОВ ПОСТАВКИ ТОВАРА.
Компания Oleoweb (Италия) производит гидравлические комплектующие: гидрозамки, предохранительные и обратные гидроклапаны, гидравлические клапаны последовательности, тормозные гидроклапаны, ручные гидронасосы, диверторы гидравлические, шаровые краны высокого давления, гидравлические плиты CETOP для гидрораспределителей и многое другое. В нашем магазине гидравлики можно купить со склада или заказать любую продукцию Oleoweb по низким ценам. Осуществляем оперативную доставку гидрокомпонентов Oleoweb по всей России.
Техническая документация
Загрузите наш каталог в pdf формате 198.2 KBДоставка
