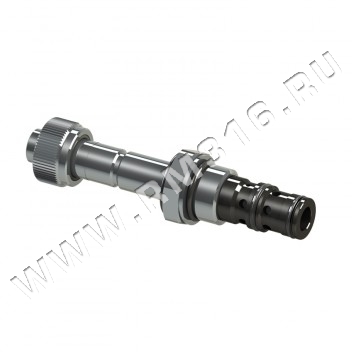

EV11 ELECTRIC COPERATED DIRECTIONAL VALVE 3 WAYS/2 POSITIONS (OLEOWEB, ИТАЛИЯ)
ELECTRIC COPERATED DIRECTIONAL VALVE 3 WAYS/2 POSITIONS
The EV11 is a directional eletric valve direct acting. An electrical impulse switches the position of a spool in order to changing the direction of the fluid.
DESCRIPTION
In EV11 electric valves the force generated by a magnetic field fed by an electric coil is transformed into a mechanical action able to control the movement of a spool and consequently the direction of the oil flow. The EV11 valves are therefore 3-way and 2-position valves. In typical installations, the delivery of the pump (to be connected to the valve's port 2) is conveyed towards the discharge (to be connected to the port 1) until an electric impulse switches the position of the slider inside the valve connecting the supply to the use (from connect to the port 3). On request, an emergency command is also available for manual switching of the valve in the event of an interruption of the electrical signal. The maximum working pressure for EV11 electric valves is 210 bar (3045 PSI), while its use is recommended with flow rates up to 12 l/min. (3,2 USgpm). The EV11 are cartridge valves with SAE8 size and can be installed in a cavity made according to the SAE08/3 standard with 3/4-16 UNF thread. On request the valve bodies are available for the in-line installation of the cartridges. For the electric actuation of the EV11 valves are also available 12V and 24V coils, in direct and alternating current, and the relative connectors.
ЕСЛИ В ТАБЛИЦЕ НИЖЕ ПОКАЗАНО, ЧТО ИНТЕРЕСУЮЩАЯ ВАС ПРОДУКЦИЯ В НАСТОЯЩИЙ МОМЕНТ ОТСУТСТВУЕТ НА СКЛАДЕ, ВЫ МОЖЕТЕ ОБРАТИТЬСЯ К СОТРУДНИКАМ МАГАЗИНА ГИДРАВЛИКИ RM316.RU ДЛЯ УТОЧНЕНИЯ СРОКОВ ПОСТАВКИ ТОВАРА.
Компания Oleoweb (Италия) производит гидравлические комплектующие: гидрозамки, предохранительные и обратные гидроклапаны, гидравлические клапаны последовательности, тормозные гидроклапаны, ручные гидронасосы, диверторы гидравлические, шаровые краны высокого давления, гидравлические плиты CETOP для гидрораспределителей и многое другое. В нашем магазине гидравлики можно купить со склада или заказать любую продукцию Oleoweb по низким ценам. Осуществляем оперативную доставку гидрокомпонентов Oleoweb по всей России.
Техническая документация
Загрузите наш каталог в pdf формате 117.3 KBДоставка
