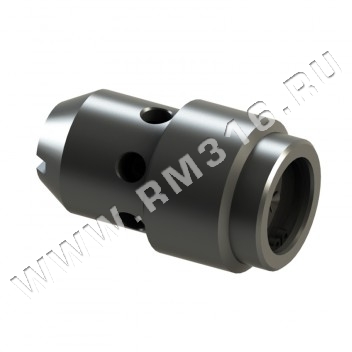

VSC120 ДВУХЛИНЕЙНЫЙ РЕГУЛЯТОР РАСХОДА С ФИКСИРОВАННОЙ НАСТРОЙКОЙ (OLEOWEB, ИТАЛИЯ)
COMPENSATED FLOW RESTRICTOR TWO WAYS WITH CONSTANT FLOW AND REVERSE FREE FLOW, FIXED SETTING
Flow control pressure compensated valves with fixed regulation VSC120 allow to keep a constant lowering speed on an hydraulic actuator in every condition of load pressure. This type of valve is typical for use in hydraulic tail lifts or platforms.
DESCRIPTION
The compensated flow regulators VSC120 are commonly installed on the base of a single effect cylinders, on the return line, in order to guarantee them, thanks to the control of back-flow, a constant lowering speed independently from the working pressure due to the load. These valves allow also the feeding flow to the cylinders without compensation. Valves VSC120 are ins ert execution valves and have fixed setting regarding the outlet flow. A calibrated orifice on the internal spool of the valve manages the regulated flow. Setting range is from 1 lpm (0,26 USgpm) to 47 lpm (12,4 USgpm), with tolerance +/- 10%. Maximum working pressure not over 250 bar (3525 PSI). VSC140 are installed in to female cavity with thread 1/2 BSPP (1/2 G). Flow control valves VSC120, thanks to their high performance combined with its easy installation, guarantee a high quality/price ratio. Thanks to the fixed regulation, once determined the ideal flow corresponding to the lowering speed, the valves VSC120 don’t need any setting operation more, with a consequent optimization in terms of installation time.
ЕСЛИ В ТАБЛИЦЕ НИЖЕ ПОКАЗАНО, ЧТО ИНТЕРЕСУЮЩАЯ ВАС ПРОДУКЦИЯ В НАСТОЯЩИЙ МОМЕНТ ОТСУТСТВУЕТ НА СКЛАДЕ, ВЫ МОЖЕТЕ ОБРАТИТЬСЯ К СОТРУДНИКАМ МАГАЗИНА ГИДРАВЛИКИ RM316.RU ДЛЯ УТОЧНЕНИЯ СРОКОВ ПОСТАВКИ ТОВАРА.
Компания Oleoweb (Италия) производит гидравлические комплектующие: гидрозамки, предохранительные и обратные гидроклапаны, гидравлические клапаны последовательности, тормозные гидроклапаны, ручные гидронасосы, диверторы гидравлические, шаровые краны высокого давления, гидравлические плиты CETOP для гидрораспределителей и многое другое. В нашем магазине гидравлики можно купить со склада или заказать любую продукцию Oleoweb по низким ценам. Осуществляем оперативную доставку гидрокомпонентов Oleoweb по всей России.
Техническая документация
Загрузите наш каталог в pdf формате 313.1 KBДоставка
